Plot of estimated function/frontier: one-input and one-output

Example: 2D plot with CNLS and CQR [.ipynb]

# import packages
from pystoned import CNLS, CQER
from pystoned.plot import plot2d
from pystoned.constant import CET_ADDI, FUN_PROD, OPT_LOCAL, RTS_VRS
from pystoned.dataset import load_Tim_Coelli_frontier

# import the data from Tim Coelli Frontier 4.1
data = load_Tim_Coelli_frontier(x_select=['labour'],
                            y_select=['output'])

# define and solve the CNLS model
CNLS_model = CNLS.CNLS(y=data.y, x=data.x, z=None, cet = CET_ADDI, fun = FUN_PROD, rts = RTS_VRS)
CNLS_model.optimize(OPT_LOCAL)

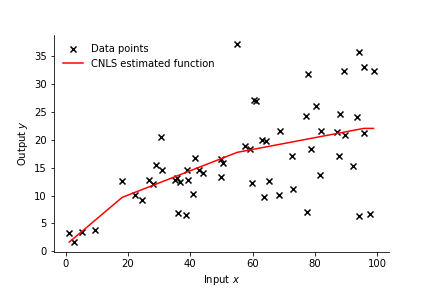

# Plot the estimated function
plot2d(CNLS_model, x_select=0, label_name="CNLS estimated function", fig_name="CNLS_2d")

# define and solve the CQR model
CQR_model=CQER.CQR(y=data.y, x=data.x, tau=0.9, z=None, cet=CET_ADDI, fun=FUN_PROD, rts=RTS_VRS)
CQR_model.optimize(OPT_LOCAL)

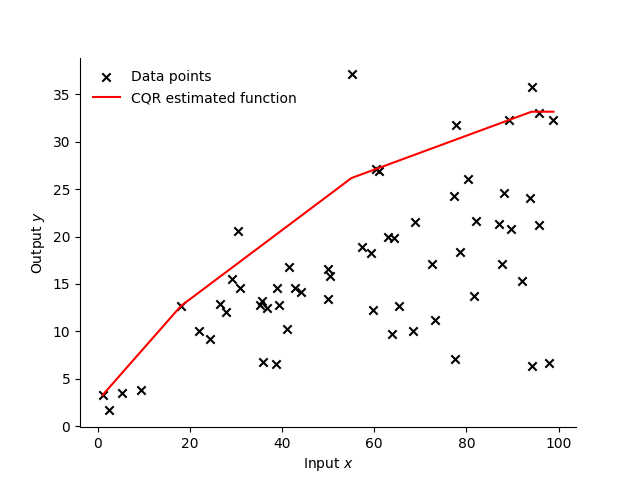

# Plot the estimated function
plot2d(CQR_model, x_select=0, label_name="CQR estimated function", fig_name="CQR_2d")
